Design Features

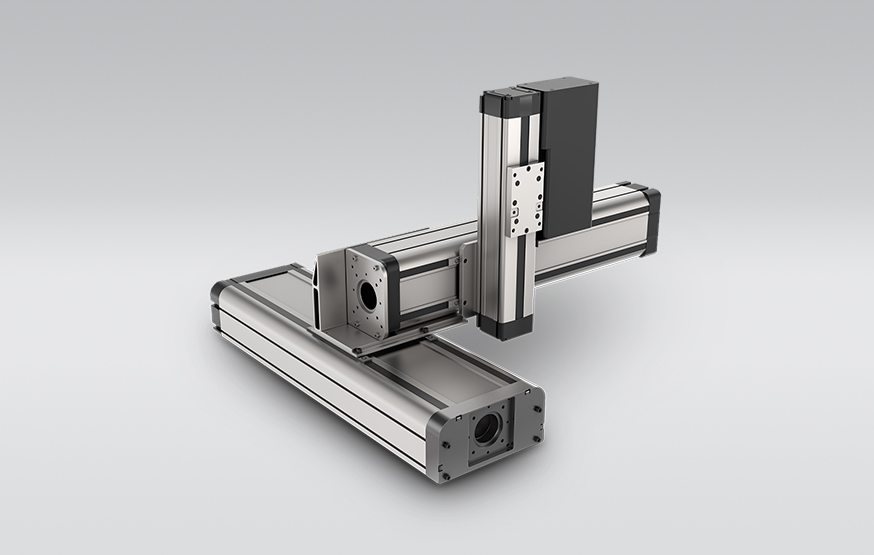

- Single axis actuators with integrated NSK ball screws, linear guides and Monocarriers enclosed in an aluminum housing
- All components are equipped with long term, maintenance-free NSK K1 lubrication units
- Available in 3 integrable design types to meet a range of stroke and payload requirements
- RS type: for light loads and 100 - 500 mm stroke; typically configured as Z axis
- RM type: for moderate loads and 250 - 950 mm stroke; typically configured as Y axis
- RH type: for moderate to heavy loads and 300 – 2000 mm stroke; typically configured as Z axis
- Motorless design offers user flexibility for motors of choice
- Equipped with seal belt for dust proofing
- Accessories including motor and machine mounting kits, XYZ combination brackets, sensor kits
Operating Benefits
- Modules bolt together easily to form XYZ stages
- High mechanical integrity of each axis resulting in systems with high rigidity, long life and smooth motion
- High load capacity with long travel life
- Long-life reliability with maintenance-free K1 lubrication units
- Easily assembled and installed
Fields of Application
- Automation
- Machine tool
- Medical
- Semiconductor
