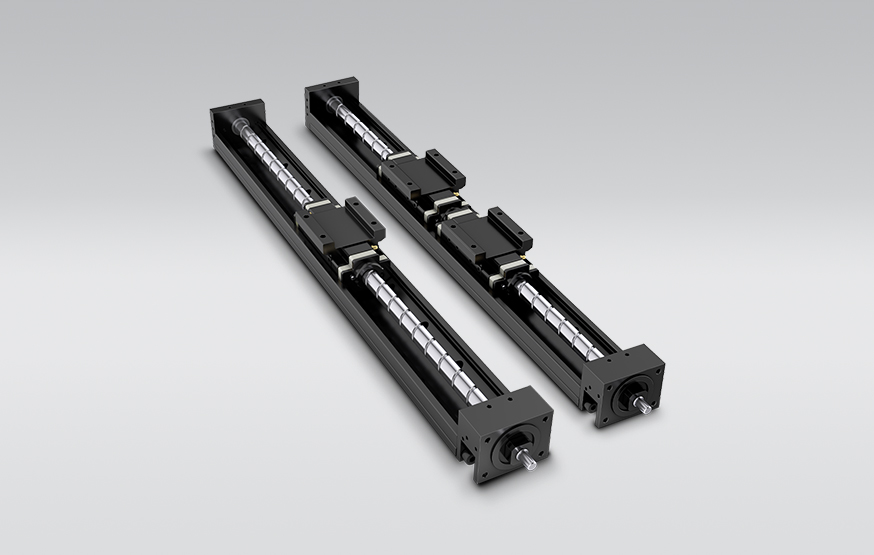

Heavy-Duty TCH Series Toughcarriers

With TCH Toughcarriers, NSK seamlessly integrates our accumulated expertise with ball screws, linear roller guides, and support bearings into a compact and highly precise single-axis actuator that delivers ultra-high load capacity to factory automation applications.

Design Features

Highly rigid, high load and maintenance-free linear actuator that integrates a high accuracy NSK ball screw, linear roller guide and ball screw support bearings
Available in single and double slider models
With long term, maintenance-free NSK K1 lubrication units
Model sizes TCH06, 08 and 10
With ball screw shaft diameters ranging from 12 to 20 mm
High grade accuracy is standard
With rust-resistant, low temperature chrome plating on bodies and sliders; fluoride chrome plating is available upon request
Multiple datum planes on the base and lateral side of the rail
Optional accessories including motor brackets, covers, sensors, combination and gantry plates

Operating Benefits

Streamlined solution consolidating multiple components into a compact, single axis actuator
Effortless and highly accurate installation
Long-life reliability with maintenance-free K1 lubrication units
