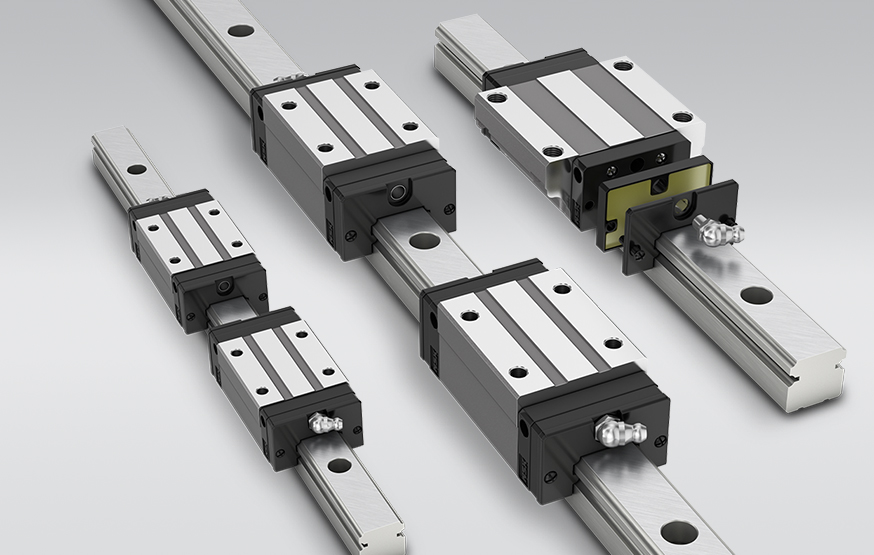

NH/NS Series Linear Guides

NH/NS series linear guides deliver outstanding precision accuracy with extremely high capacity. With advanced ball groove geometry and recirculation, load ratings and running distance are optimized while attaining smooth and quiet circulation in high-speed applications.

Design Features

Available in standard NH series and compact, low-profile NS series
High-speed, high-load design is standard
2 types of ball slides: square and flange type
3 lengths of ball slide: standard high load, long super-high load, and short medium load
Ball slides and rail manufactured with special high carbon steel; stainless steel option available for corrosive environments
Accuracy grades range from normal to ultra-precision
With fine clearance, slight preload and medium preload options
Accessories and extras including: K1-L lubrication units, double seals, protector plates, surface treatments

Operating Benefits

Smoother ball recirculation resulting in higher speed capabilities
Robust design delivers optimal absorption of impact loads
Higher load ratings make it possible to achieve longer running distance of life or downsize system design
Interchangeable - rails and ball slides can be used in many combinations
