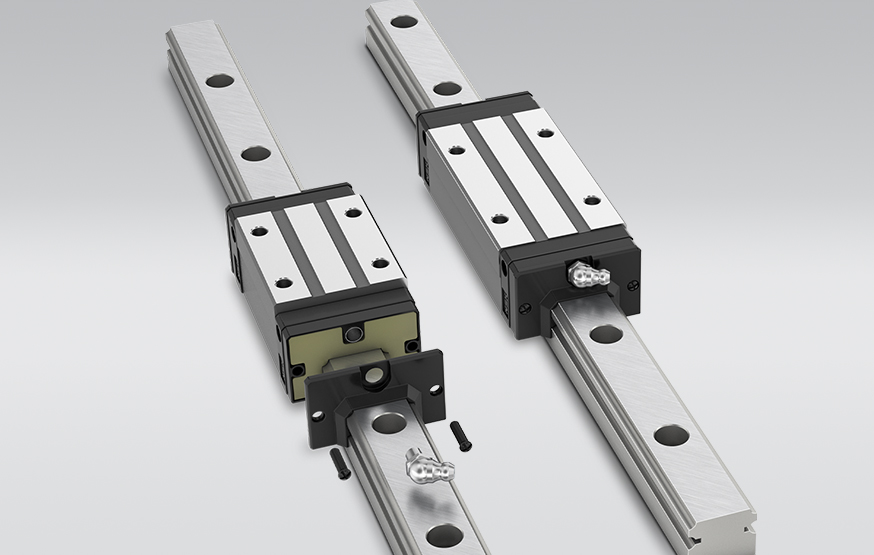

Dust-Resistant VH Series Linear Guides

VH series linear guides are equipped with high-performance end seals to deliver precision accuracy, high capacity and high-speed performance with superior reliability while operating in contaminated environments.

Design Features

Available in general duty VH series and long-life DV series
Equipped with high-performance, multi-lip end seal
High-speed, high-load design is standard
2 types of ball slides: square and flange type
2 lengths of ball slide: standard high load and long super-high load
Ball slides and rail made manufactured with special high carbon steel; stainless steel option available for corrosive environments
Accuracy grades range from normal to ultra-precision
With fine clearance, slight preload and medium preload options
Accessories and extras including: K1-L lubrication units, double seals, protector plates, surface treatments

Operating Benefits

Contamination from fine grain contaminants reduced by as much as 90% versus standard models
Operating life under contaminated environments as much as 5 times longer
Interchangeable - rails and ball slides can be used in many combinations
