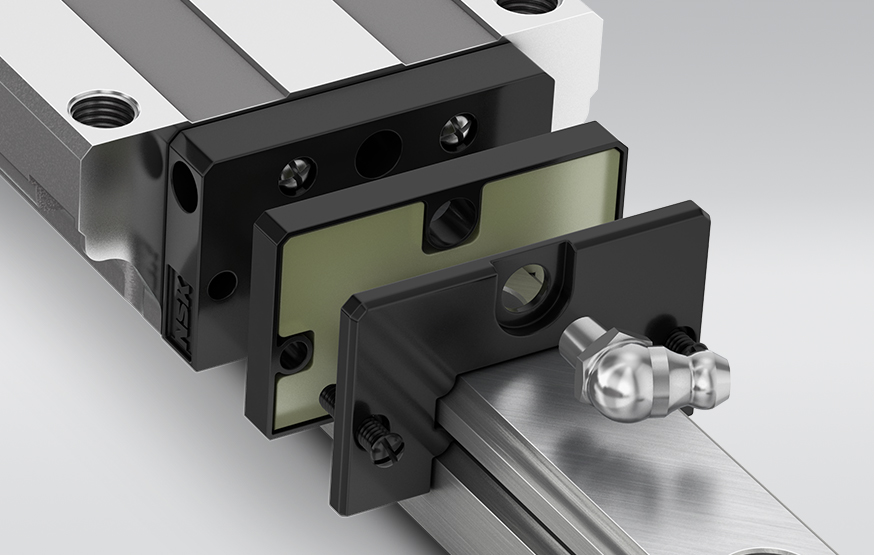

Design Features
- Composed of a porous synthetic resin containing abundant lubricating oil - approximately 85% by weight
- Sliding friction and heat generated between the K1-L unit and the linear rail raceway creates a constant release of fresh oil over a long period of time, preventing premature wear and achieving optimal operating life
- Also absorbs excess oil and re-releases repeatedly to consistently meet lubrication requirements
- Available for NH/NS, DH/DS, VH and HS series linear guides
Operating Benefits
- Extended maintenance-free operation with newly developed material delivering lubrication nearly twice as long as conventional K1
- 20% reduction of friction force through improved rail-contact design, reducing energy use in drive equipment
- Compensating oil release characteristics when lubrication conditions are lacking, always ensuring smooth and stable operation
- Long-term maintenance-free operation when equipped with K1(-L) lubrication units
Fields of Application
- Automation
- Automotive
- Food and beverage
- Machine tool
- Medical
- Semiconductor
