Design Features

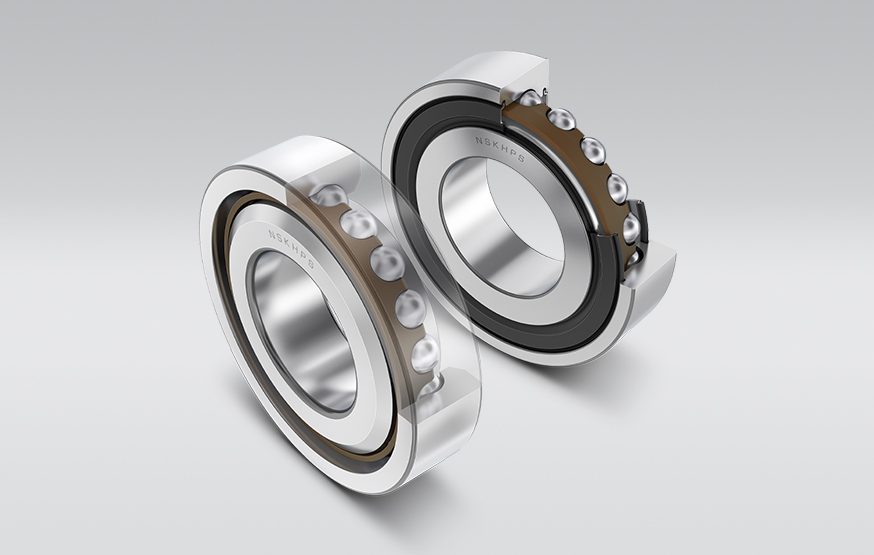

- Special design angular contact thrust ball bearing with maximized ball complement
- Manufactured with high steel purity
- Special design polyamide resin cage
- Available as open bearing or with light contact seals; non-contact seals are available for some sizes
- With 60° contact angle
- With PN7C accuracy (NES class 7C with axial runout equivalent to P2)
- Available for bore diameters from 15 to 60 mm
- For universal matching / arrangements
Operating Benefits
- Improved steel purity optimizes bearing fatigue life and dynamic load ratings
- Special design cage supports high speeds with low friction
- Light-contact seal design prevents contamination while supporting high-speed operation with low torque and low heat generation
Fields of Application including
- Machine Tools
