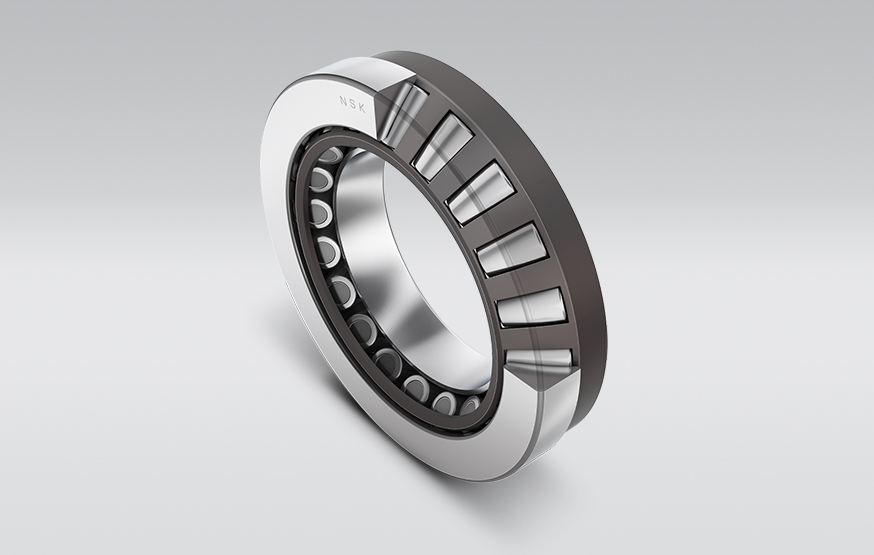

Spherical Roller Thrust Bearings

Spherical roller thrust bearings support very high axial loads and moderate radial loads, even with shaft misalignment. Ideal for top drives, crushers, vertical motors and heavy-duty gearboxes, where their robust design ensures reliable operation under harsh conditions, accommodating vibration, shock loads, and shaft deflection.

Spherical Roller Thrust Bearings

Design Features

  • Specially designed raceways and convex rollers
  • Available in high-capacity E-type design
  • Available with machined brass and pressed steel cages
  • For dimension series 292, 293, 294
  • Available for bore diameters from 60 to 500 mm

Operating Benefits

  • High axial load capacity with moderate radial load / combined load capacity
  • Compensate for angular misalignment
  • Suitable for relatively high speeds
  • Absorb impact loads

Fields of Application including

  • Concrete and cement
  • Electric motors
  • Fans and blowers
  • Gearbox and drives
  • Mining and construction machinery
  • Paper making machinery
  • Oil and gas machinery
  • Steel making machinery
