Sendzimir Back-Up Roll Bearings

NSK’s back-up roll bearings for Sendzimir and cluster mills are engineered with the requisite ring strength and running accuracy to support precise plate and sheet making. With advanced options including our long-life Super-TF steel and innovative seal design, they withstand heavy loads, contamination and lubrication challenges to deliver a long and reliable service life.

Sendzimir Back-Up Roll Bearings

Design Features

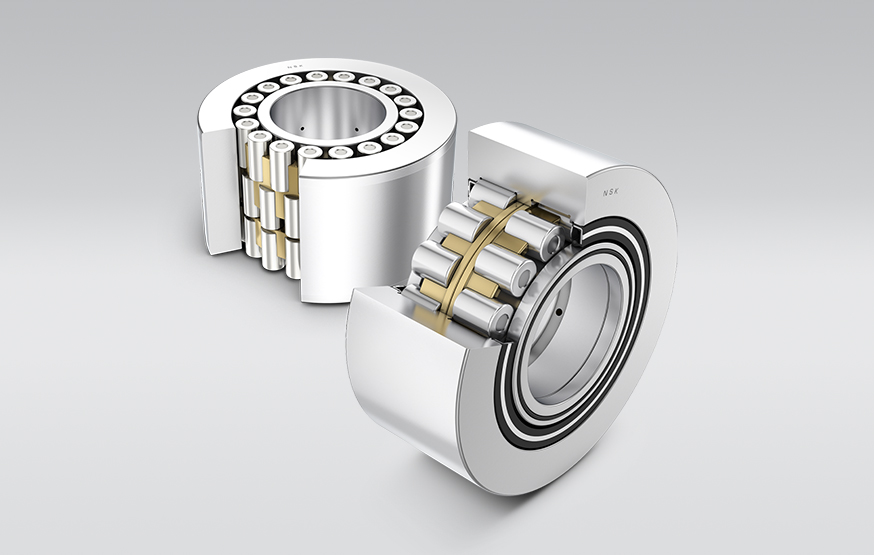

  • Special design high-capacity cylindrical roller bearings with eccentrically thick outer rings, which serve as the back-up roll
  • Available with Super-TF or Extra-Pure (EP) material options for extraordinarily high endurance
  • In three row or double row designs
  • With machined brass cages
  • Advanced seal design option available for double row bearings
  • Special tolerances for precision running accuracy
  • With C2, C-normal and custom matched-set clearance

Operating Benefits

  • Significantly longer fatigue life under heavy loads and severely compromised lubrication conditions with Super-TF and EP material options
  • Optimized seal design for oil-mist / oil-air lubrication conditions
  • Lower seal contact force allows for higher speed operation with reduced seal wear
  • High rotational accuracy
  • Higher reliability with reduced bearing consumption

Fields of Application including

  • Steel making machinery
