Design Features

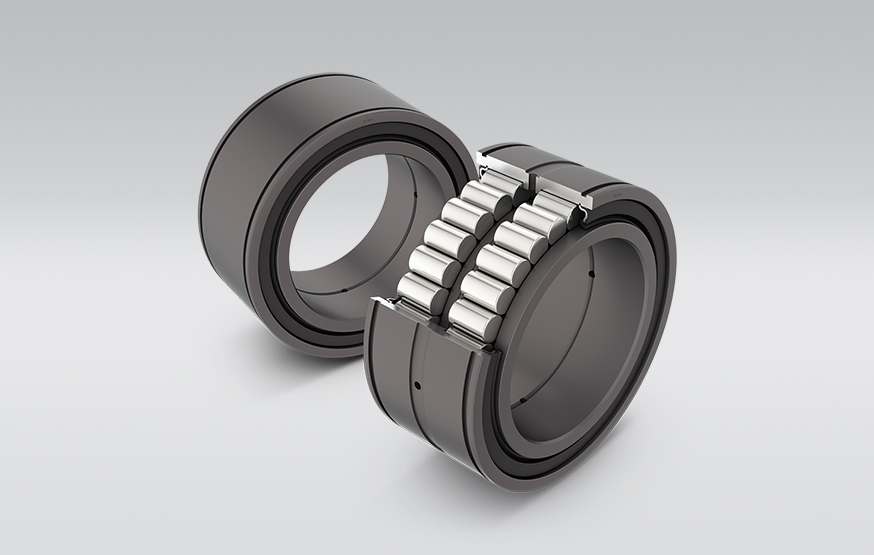

- Special design double row, full complement cylindrical roller bearing
- Optimized, high-capacity internal design for heavy radial and axial loads
- Phosphate inner and outer ring surface treatment for long-life corrosion resistance
- With high performance contact seal for resistance to water or particle ingress
- Grease is factory-packed into the bearing; replenishing with lithium grease is recommended
- Also available in shielded and open bearing designs
- Lubrication groove and holes in the inner and outer ring
- Outer ring snap ring grooves in accordance to DIN 471; snap rings sold separately
- For dimension series 50
- With C-normal and C3 clearance
Operating Benefits
- Accommodates extremely high radial and axial loads with high rigidity
- Phosphate coating permits use in a wide range of environments with excellent corrosion and rust resistance
- Advanced contact seal prevents grease leakage and ingress of water and external contaminants
- Simple re-lubrication – even during operation – with lubrication features
Fields of Application including
- Cranes and hoists
- Mining and construction machinery
- Steel making machinery
