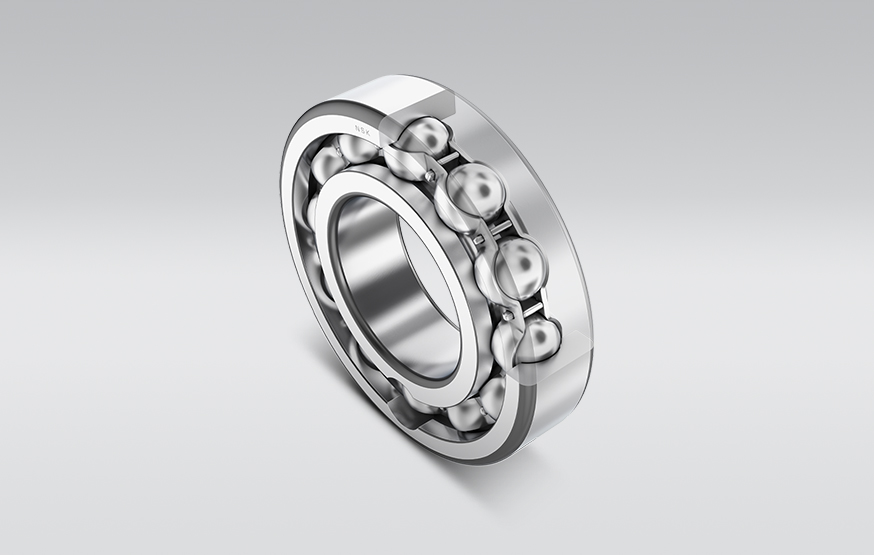

Maximum Deep Groove Ball Bearings

With inner and outer ring filling slots that allow more balls to be inserted into the bearing, maximum bearings support higher radial loads than standard deep groove ball bearings of the same size. They are, however, restricted by limiting speed and have limited suitability for axial loads.

Design Features

Manufactured with filling slots in the inner and outer rings to accommodate maximum number of balls
With pressed steel cage
Available as open bearings or closed with non-contact metal shield seals
Radial internal clearances C2, C-normal, C3, C4 and C5
Equivalent to dimension series 62 (BL2) and 63 (BL3)
For shaft diameters ranging from 25 to 110 mm

Operating Benefits

Significantly higher radial load capacity compared with standard deep groove ball bearings, without increasing the bearing size
Cost-effective alternative to roller bearing
