New Development Products
Next Gen. Selectable One-Way Clutch
NSK-Warner is developing evolution type One-Way Clutch called Selectable One-Way Clutch(SOWC) as next generation one.
The SOWC has a feature of mode change as rotation-lock, one way direction rotation and free rotation by a selector to contribute less drag torque and spacing in xEV powertrain.

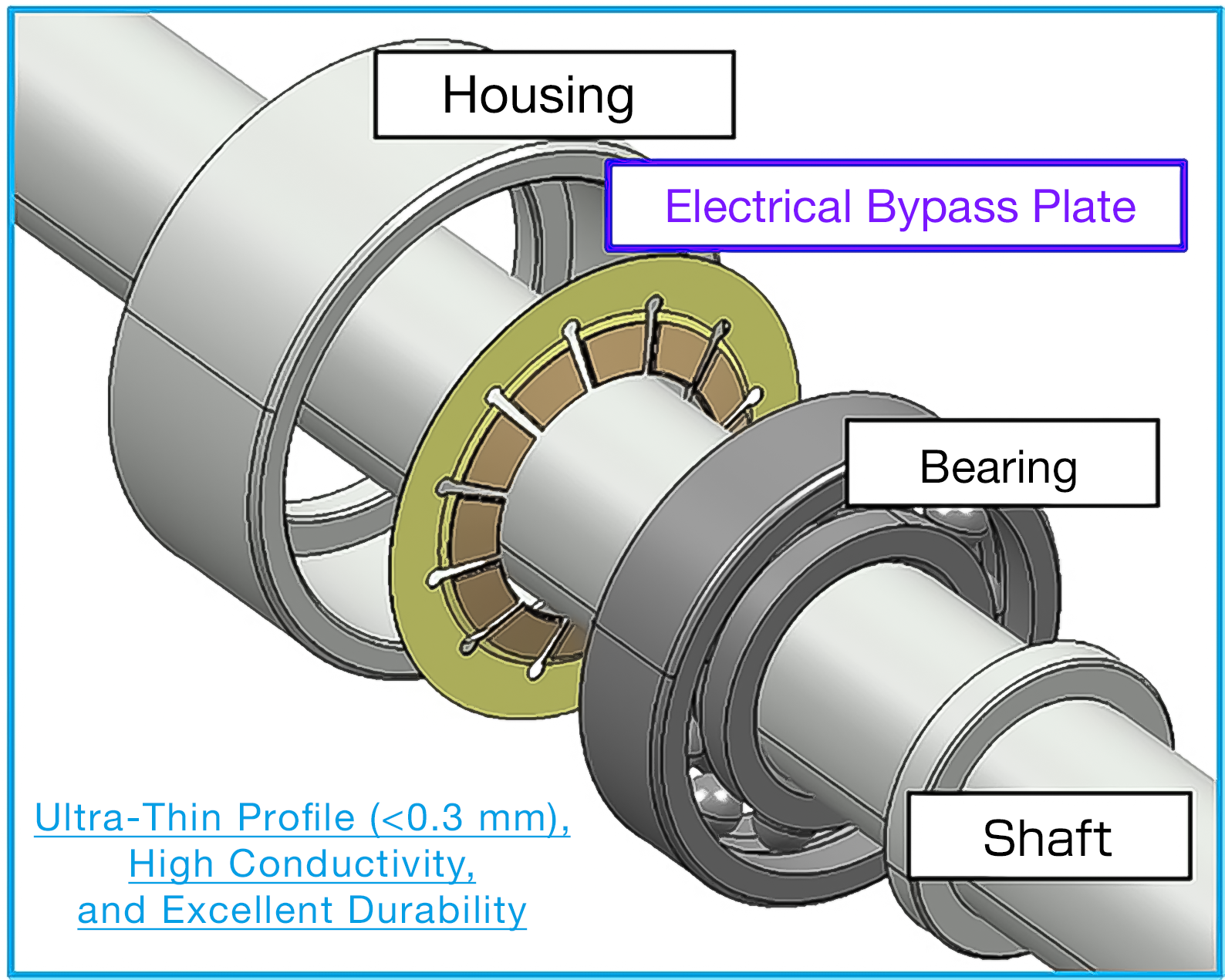

Electrical Bypass Plate (EByP)
As electric vehicles (EVs) continue to evolve, electrical erosion caused by stray current passing through motor bearings has emerged as a critical reliability issue.
NSK-Warner has developed the Electrical Bypass Plate (EByP) to effectively address this challenge.
Utilizing proprietary conductive paper technology and a unique spring structure, the EByP delivers more than ten times the conductivity of conventional solutions while achieving an ultra-thin thickness of less than 0.3 mm, approximately one-tenth that of conventional products.
Its compact design enables easy installation between the bearing and housing, enhancing space efficiency, design flexibility, and assembly performance.
The EByP is a next-generation solution that contributes to electrical erosion prevention and enhanced EMC performance in EV drive systems.
